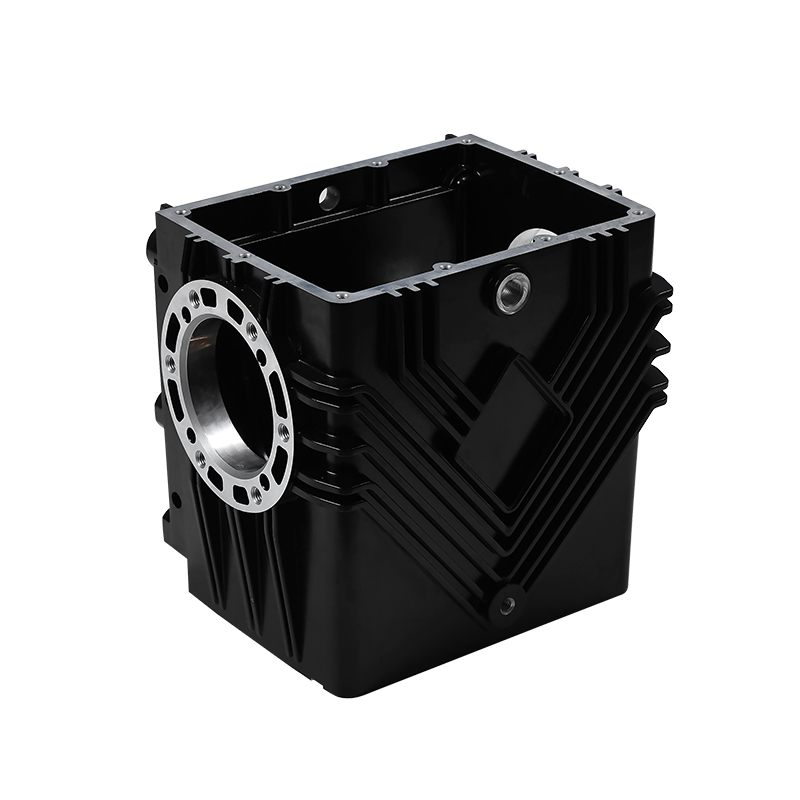

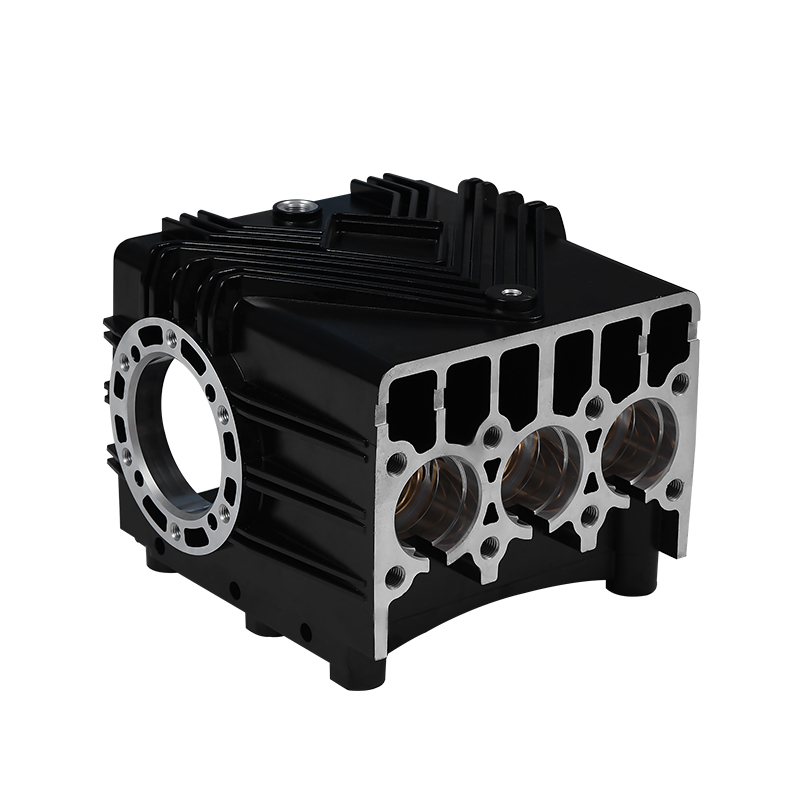

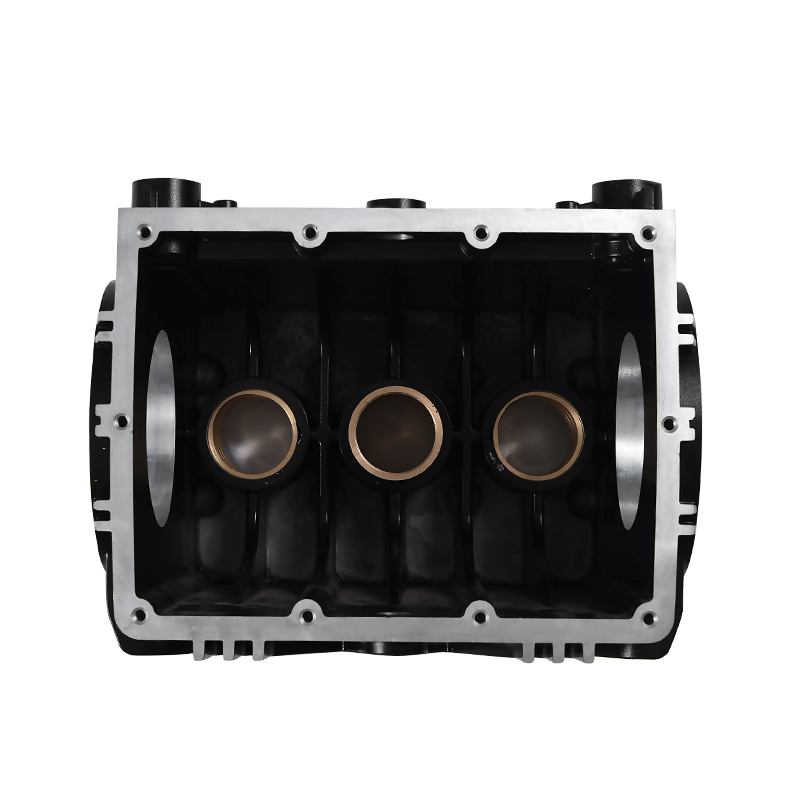

Car Engine Block Die Casting Manufacturers

1. Introduction to Car Engine Blocks

The car engine block, often referred to as the cylinder block, is the central component of an internal combustion engine. It serves as the structural backbone of the engine, housing crucial elements such as the cylinders, cooling passages, oil galleries, and other integral components that work together to ensure the engine operates efficiently. The engine block forms the main structure of an engine. It provides the mounting points for various components such as the cylinder head, crankshaft, and oil pan. This foundational role ensures that all engine parts are aligned correctly, maintaining the engine's integrity and stability during operation. The rigidity and strength of the engine block are paramount to withstand the stresses and forces generated during combustion. At the heart of the engine block are the cylinders, where the combustion process takes place. The cylinders are precisely machined to house the pistons, which move up and down to convert the energy from fuel combustion into mechanical work. The arrangement and number of cylinders in the engine block can vary, influencing the engine's performance characteristics. Common configurations include inline, V-shaped, flat (boxer), and W-shaped layouts, each with its own advantages and applications. Efficient cooling and lubrication are critical to the engine's performance and longevity. The engine block incorporates an intricate network of cooling passages that allow coolant to flow around the cylinders, absorbing and dissipating heat generated during combustion. This prevents overheating and ensures the engine operates within the optimal temperature range. Oil passages are integrated into the engine block to facilitate the flow of lubricating oil to various moving parts, reducing friction and wear. The material used for the engine block is crucial for its durability, heat dissipation, and overall performance. Traditional engine blocks were commonly made from cast iron due to its strength and wear resistance. However, modern engines increasingly use aluminum alloys, which offer significant weight savings and improved thermal conductivity. The choice of material can impact the engine's efficiency, weight distribution, and manufacturing cost. The engine block is not an isolated component; it works in conjunction with other essential engine parts. The cylinder head, which covers the top of the engine block, contains the combustion chambers, valves, and spark plugs. The crankshaft, housed at the bottom of the engine block, converts the pistons' linear motion into rotational motion that drives the vehicle's wheels. The oil pan, attached to the bottom of the block, collects and stores engine oil. Ningbo Fenda New Energy Technology Co., Ltd., currently occupying a 15,000 square meter factory area with more than 140 employees, specializes in manufacturing auto parts such as electric control box casings, motor casings, and water pump casings for new energy vehicles. Their expertise in aluminum die-casting and precision machining ensures high-quality engine components that meet stringent performance standards.

2. Engine Block Design and Construction

The design and construction of an engine block are crucial factors that influence an engine's performance, durability, and efficiency. The engine block must withstand high temperatures and pressures while providing precise housing for the cylinders and other components.

a) Cylinder Configuration: One of the most fundamental aspects of engine block design is the cylinder configuration. The arrangement and number of cylinders directly impact the engine's power output, smoothness, and overall size. Common configurations include: Inline (Straight) Engine Blocks: Cylinders are arranged in a single row, making the design simple and compact. Inline engines are known for their smooth operation and ease of manufacturing. V Engine Blocks: Cylinders are arranged in two banks set at an angle to each other, forming a "V" shape. V engines, such as V6 or V8, allow for more cylinders in a shorter length, providing higher power output while maintaining a compact design. Flat (Boxer) Engine Blocks: Cylinders lie flat and oppose each other horizontally. This configuration, used in some high-performance and sports cars, lowers the engine's center of gravity and improves balance. W Engine Blocks: An extension of the V engine, with three banks of cylinders arranged in a "W" shape. This design allows for even more cylinders in a compact space, used in some high-performance engines. Ningbo Fenda New Energy Technology Co., Ltd. employs advanced manufacturing techniques with their 6 large-scale aluminum die-casting machines ranging from 400T to 2000T, coupled with 80 high-speed/high-precision machining centers and 30 high-precision friction stir welding and electric machining machine tools. These capabilities enable precise fabrication of engine blocks that meet diverse cylinder configuration requirements, ensuring optimal performance and durability.

b) Cooling Passages: Effective cooling is critical to prevent engine overheating and ensure consistent performance. Engine blocks are designed with intricate cooling passages that allow coolant to circulate around the cylinders. These passages absorb the heat generated during combustion and transfer it to the radiator, where it is dissipated. Key considerations in cooling passage design include: Thermal Efficiency: Ensuring even heat distribution and efficient heat transfer to avoid hotspots that can cause engine damage. Coolant Flow: Designing passages that promote smooth and uninterrupted coolant flow to enhance cooling efficiency. Ningbo Fenda New Energy Technology Co., Ltd. integrates precise cooling passage designs into their engine blocks, leveraging their expertise in thermal management to enhance engine performance and reliability across various operating conditions.

c) Oil Passages: Lubrication is essential to reduce friction between moving parts and prevent wear and tear. Engine blocks incorporate oil passages that deliver oil to critical areas such as the crankshaft, camshaft, and piston rings. Proper lubrication ensures smooth operation and extends the engine's lifespan. Considerations in oil passage design include: Optimal Flow: Ensuring that oil reaches all necessary parts quickly and efficiently. Pressure Management: Maintaining consistent oil pressure to prevent damage from insufficient lubrication. Contamination Prevention: Designing passages to minimize the risk of oil contamination from debris or combustion byproducts. Ningbo Fenda New Energy Technology Co., Ltd. implements advanced oil passage designs in their engine blocks, enhancing lubrication efficiency and prolonging engine life. Their meticulous approach to oil management contributes to superior engine performance and reliability.
